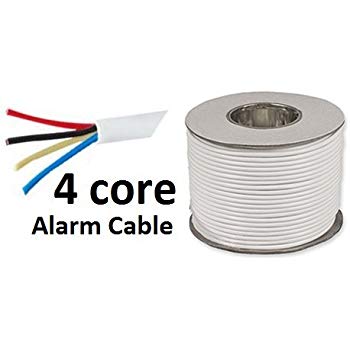

Intruder Alarm/Signal Cable The intruder alarm signal cable is made of the highest quality raw materials. Alarm/Bell-Wire & Keyboard Cable
4 core alarm cable Specifications
Number of Cores-4
Outer Diameter-4.35mm
Reel Length-100m
Sheath Material-Polyvinyl Chloride PVC
Core Strands-7/0.19mm²
Current Rating-1 A per core
Minimum Operating Temperature–50°C
Maximum Operating Temperature-+70°C
Voltage Rating-50 V
Jacket Ripcord-Yes
Standards Met-BS EN 50363-4-1, BS4737, Euroclass Eca
Cable Shape-Multicore
Conductor Material=Tinned Annealed Copper
Bedding Material-PVC
Size of Strands-0.19 mm²
Sheath Colour-White
Number of Strands-4
Conductor Resistance-98.6 Ω
Insulation material-PVC
Screened/Unscreened-Unscreened
