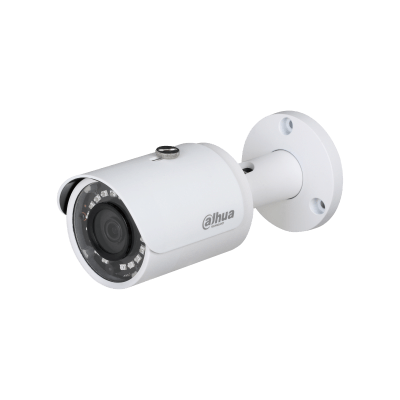

Dahua 2mp IP Camera IPC HFW1230S-S5 specifications:-
| Camera | ||
| Image Sensor | 1/2.7” 2Megapixel progressive CMOS | |
| Effective Pixels | 1920(H) x1080(V) | |
| RAM/ROM | 256MB/32MB | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | |
| Minimum Illumination | 0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) |
|
| S/N Ratio | More than 50dB | |
| IR Distance | Distance up to 30m(98ft) | |
| IR On/Off Control | Auto/ Manual | |
| IR LEDs | 18 | |
| Lens | ||
| Lens Type | Fixed | |
| Mount Type | Board-in | |
| Focal Length | 2.8 mm (3.6 mm optional) | |
| Max Aperture | F2.0/F2.0 | |
| Angle of View | H:104°/92°,V:55°/50° | |
| Focus Control | Fixed | |
| Close Focus Distance | 0.6m(0.9m) | |
| Video | ||
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240) |
|
| Compression | H.265/H.264H/MJPEG(Sub Stream) | |
| Smart Codec | Support H.265+/H.264+ | |
| Streaming Capability | 2 Streams | |
| Digital Zoom | 16x | |
| Frame Rate | Main Stream: 1080P(1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) |
|
| BLC Mode | BLC / HLC / DWDR | |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Flip | 0°/90°/180°/270° | |
| Bit Rate | H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps |
|
| Bit Rate Control | CBR/VBR | |
| Motion Detection | Off / On (4 Zone, Rectangle) | |
| Region of Interest | Off / On (4 Zone) | |
| Privacy Masking | Off / On (4 Area, Rectangle) | |
| Smart IR | Support | |
| Electronic Defog | Support | |
| Mirror | Off / On | |
| PTZ | ||
| Pan/Tilt Range | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° | |
| Interface | ||
| Video Interface | N/A | |
| Audio Interface | N/A | |
| RS485 | N/A | |
| Alarm | N/A | |
| Intelligence | ||
| Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly | |
| IVS | Tripwire, Intrusion | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP; TLS |
|
| Interoperability | ONVIF Profile S&G, API | |
| Streaming Method | Unicast / Multicast | |
| Max. User Access | 10 Users / 20 Users | |
| Edge Storage | NAS
Local PC for instant recording |
|
| Web Viewer | IE, Chrome, Firefox, Safari | |
| Management Software | Smart PSS, DSS, DMSS | |
| Smart Phone | IOS, Android | |
| Certifications | ||
| Certifications | CE (EN 60950:2000)
UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
| Power | ||
| Power Supply | DC12V, PoE (802.3af)(Class 0) | |
| Power Consumption | <5.5W | |
| Environmental | ||
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |
| Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | |
| Protection Grade | IP67 | |
| Vandal Resistance | N/A | |
| Construction | ||
| Casing | Metal+Plastic | |
| Dimensions | Φ70mm×164.7mm(2.76”x6.49”) | |
| Net Weight | 0.38Kg(0.84lb) | |
| Gross Weight | 0.44Kg(0.97lb) | |
| DORI Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Detect | Observe | Recognize | Identify | Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 53(174ft) | 16(52ft) | 8(26ft) | 4(13ft) | 2.8 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 40(131ft) | 21(69ft) | 11(36ft) | 5(16ft) | 3.6 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
