Electric drop bolt door lock specifications: –
NC mode – (locked while supplied with power), fail safe mode
Suitable for: wooden door, glass door, metal door, fireproof door, etc
Safety function: built-in voltage spike suppressor
Material: stainless steel
Technical Information:
Operating Mode: NC (locked while supplied with power), fail safe mode
Voltage: DC 12V, 1A
Current:
-Start: 0.45A
-Standby: 0.45A
Dimensions (Magnetic base):
– Approx. 25 (W) x 90 (H) x 3 (D) mm
– Approx. 1″ (W) x 3-1/2″ (H) x 1/8″ (D) inch
Dimensions (Main body):
– Approx. 35 (W) x 205 (H) x 45 (D) mm
– Approx. 1-3/8″ (W) x 8″ (H) x 1-3/4″ (D) inch

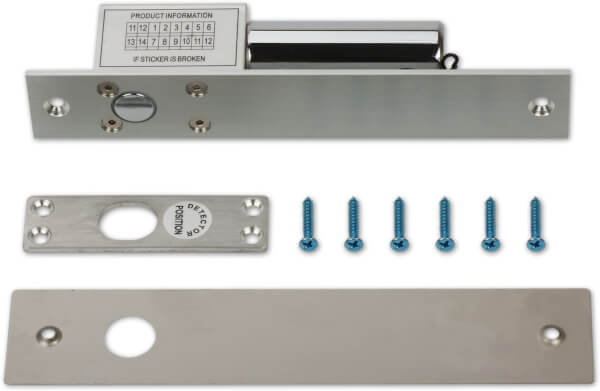

Package includes:
1 x Electric Drop Bolt Lock
1 x Magnetic Base
1 x Faceplate
1 x User Manual
1 x Installation Kit
