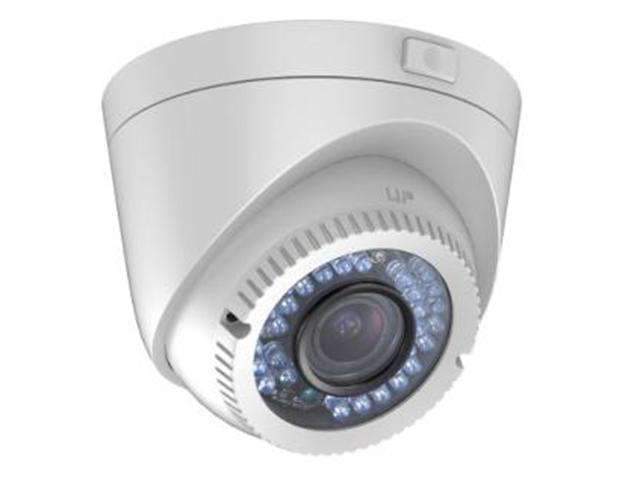

Analogue HD Varifocal Dome Camera 720P Specs:-
| Camera | ||
|---|---|---|
| Angle Adjustment: | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |
| Image Sensor: | 1MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1296(H)x732(V) | |
| Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 – 12 mm @ F1.4 | |
| Lens Mount: | φ14 | |
| Day& Night: | IR cut filter with auto switch | |
| Video Frame Rate: | 720p@25fps/720p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| S/N Ratio: | More than 62 dB | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±15% | |
| Power Consumption: | Max. 4 W | |
| IR Range: | Up to 40m | |
| Dimension: | Φ130.54 × 102.4mm (Φ5.1” × 4”) | |
| Weight: | Approx. 710g | |
