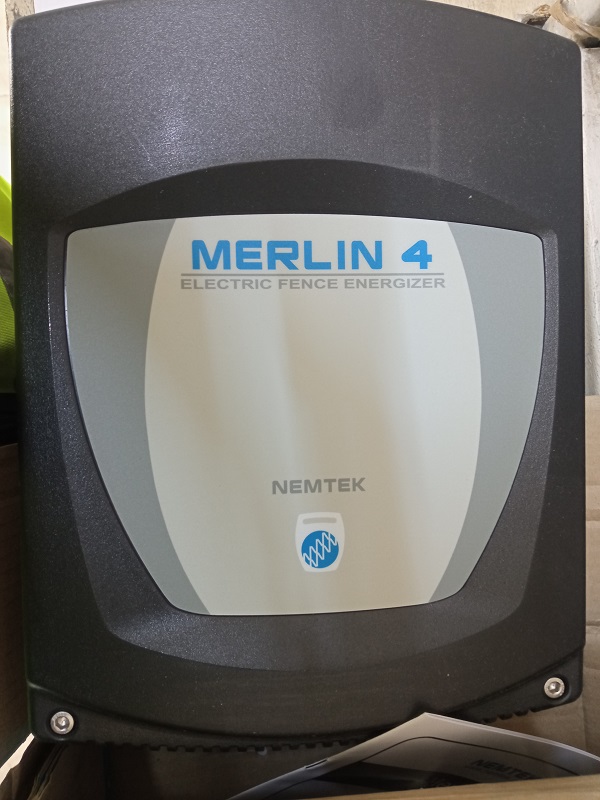

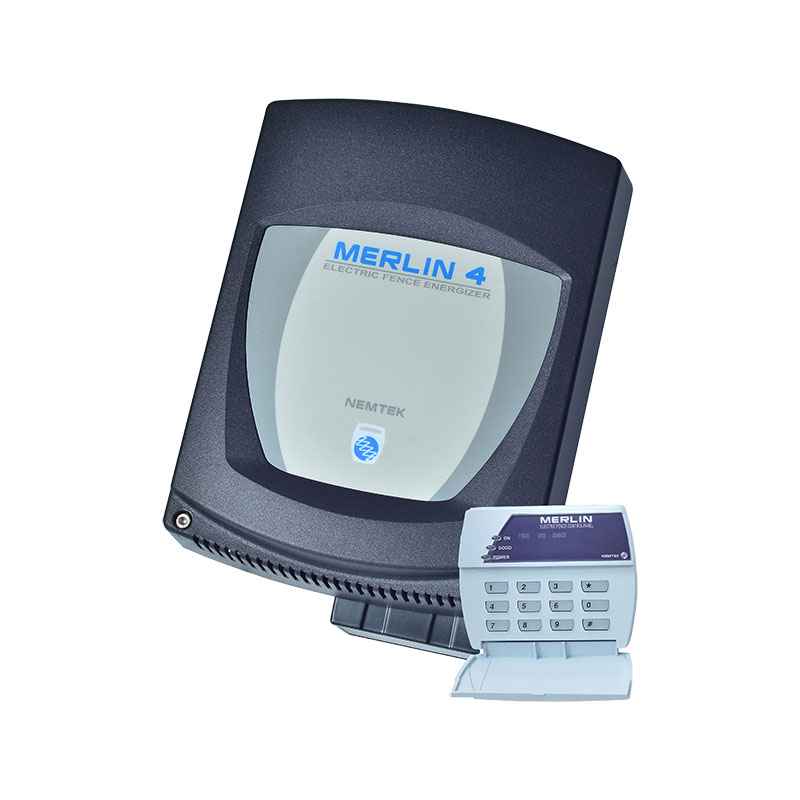

Merlin 4i Energizer with keypad Features:-
- 3.7 Joule output energy (single zone)
- Robust and flexible design for home and commercial security
- Built-in alarm monitors tampering or faults on the high voltage and earth fence wires
- Connectable to armed response radio or GSM module
- Lightning and power surge protection
- Intelligent power saving to extend battery life
- Powered by 230V mains and includes built-in battery for back-up power
- Built-in gate alarm input to monitor if the gate is open or closed
- Gate chime available to alert that the gate has been opened or closed

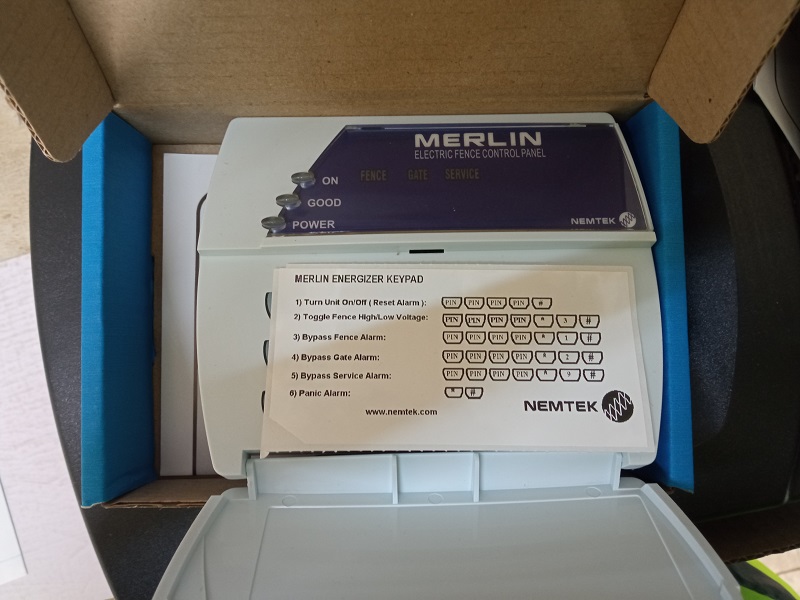

- The fence voltage outputs can be adjusted using the keypad
- The siren and gate outputs can be bypassed using the keypad
Specifications:
| Enclosure size | 285(L) x 212(W) x 120(D)mm |
|---|---|
| Weight | 3.1kg excluding battery (7AH) 5.3kg including battery (7AH) |
| IP rating | IPx4 |
| Operating temperature | -10°C to 50°C |
| Operating humidity | < 80% non-condensing |
| Electrical supply voltage | 240V |
| Typical power consumption | 18VA (normal operating conditions) |
| Standby Time | 24hrs (fully charged battery) |
| Energy output | 3.7 Joule per zone (500 Ohms load) |
| Open circuit voltage | 8000V |
